HMI touch panel 15”, TFT, (1024x768, 65k), RS232, RS422/485, 3x RS485, USB Client/Host, Ethernet

Product description

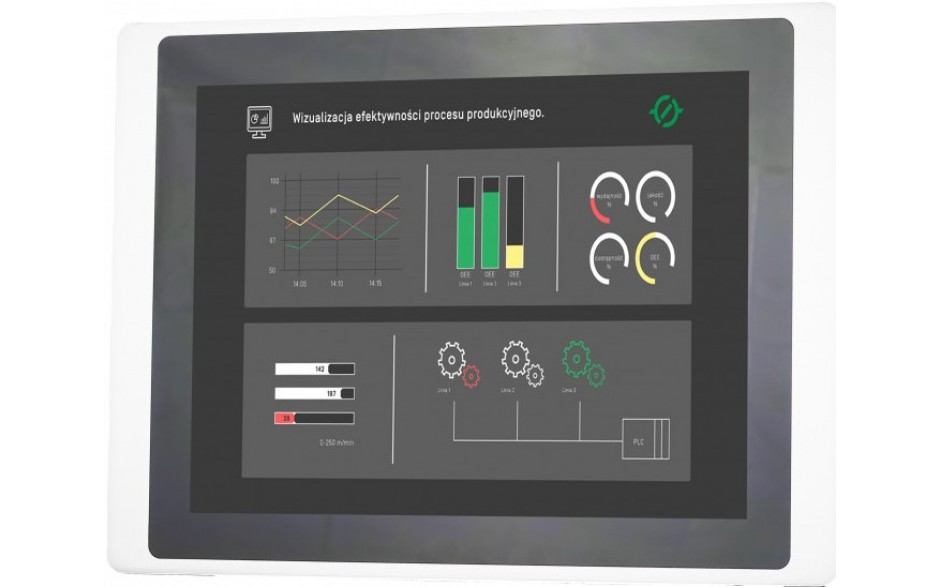

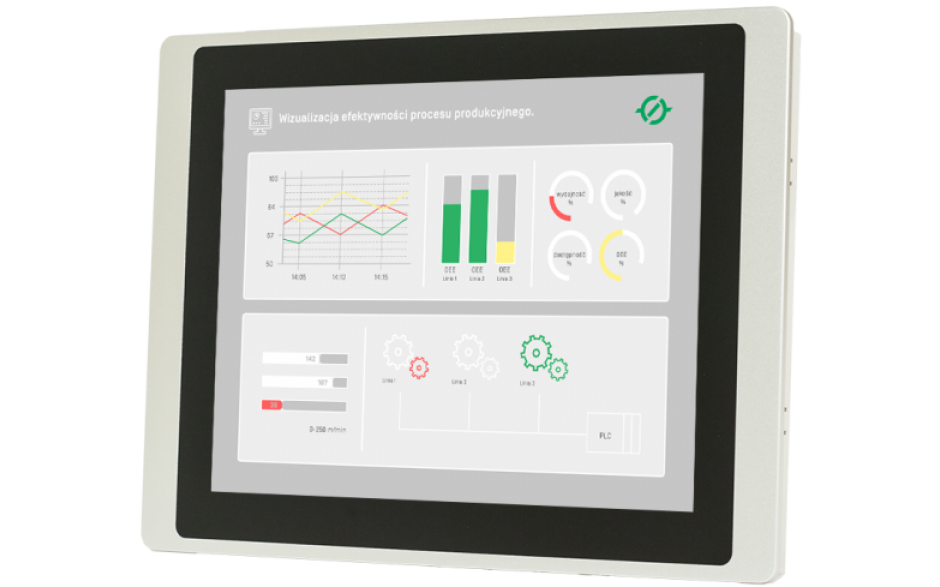

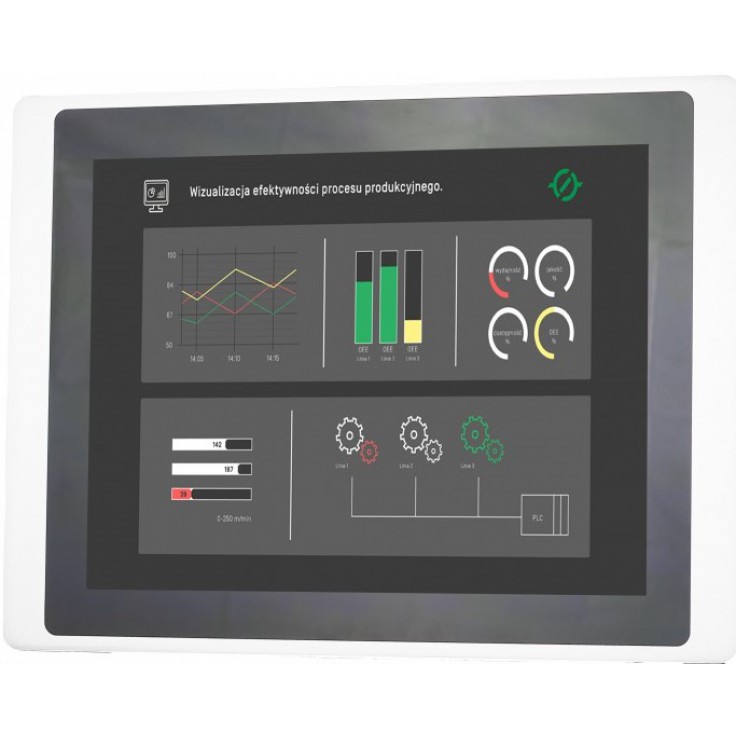

The AS46TFT1507 operator panel is equipped with a graphical operator screen with a resolution of 1024 x 768 pixels, it has an active touch matrix with a diagonal of 15” and supports 65535 colors. The panoramic operator screen and high resolution make it possible to accurately reproduce the controlled process on the panel screen, which has a significant impact on the acceleration of service.

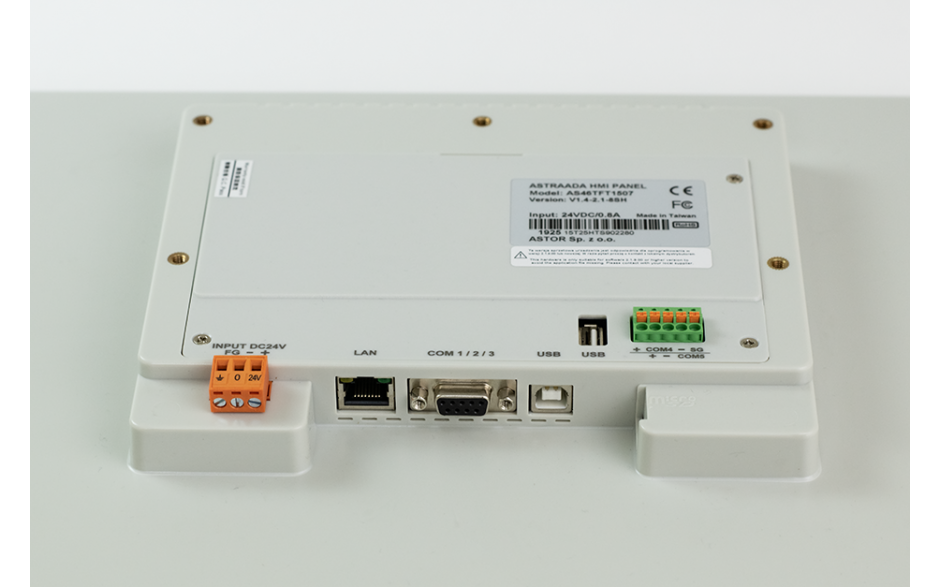

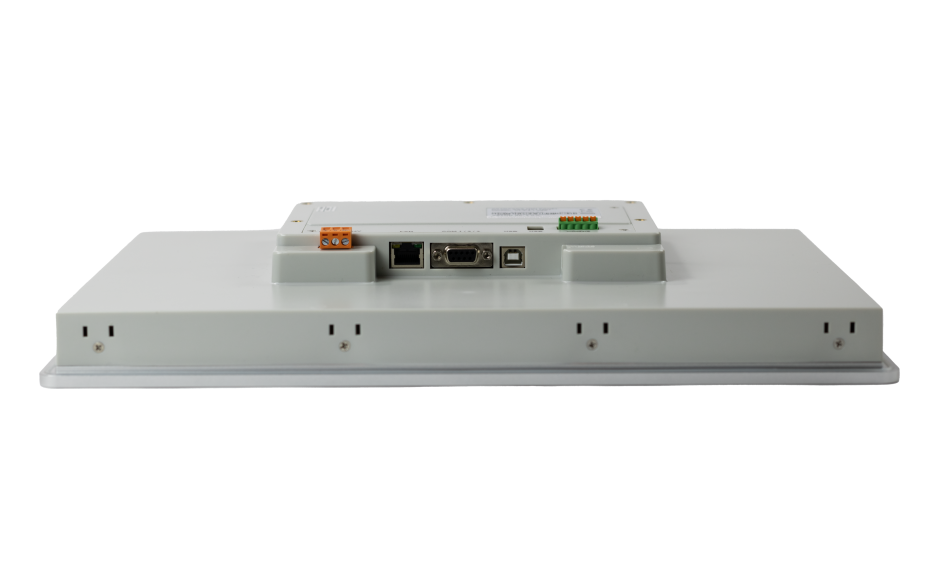

The panel is equipped with five independent communication interfaces physically derived on two ports, operating in the following standards:

• port DB9: COM1 - RS232, COM2 – RS422/485 and COM3 – RS485,
• 5-pin edge link: COM4 – RS485 and COM5 – RS485.

As a standard, the panel is also equipped with an Ethernet port, USB Host and Client port. The built-in 64 MB RAM and 64 MB Flash memory allow you to build complex visualization applications that support animated graphic objects, bitmaps and animations on the screen. The panel has an additional 64 MB of program memory and historical data storage, and 128 KB of battery-backed memory in which process data can be stored.

The operator panel is programmed with the Astraada HMI CFG software, which allows you to configure alarms, trends, recipes, logging of historical data and events. The functionality and capabilities of the panel are enhanced by the support of program macros and multilingual applications. Panels programmed in the Astraada HMI CFG environment from version 2.0.0 onwards provide new functionality for remote access via the VNC protocol.

Characteristic features of the panel:

• Touch, color operator screen with a diagonal of 15”
• Support 65535 colors
• 1024 x 768 pixel resolution
• Widescreen display
• Built-in 5 serial communication ports
• Built-in Ethernet port with FTP Server and VNC Server support
• Built-in USB Client and Host port
• Support for over 280 communication protocols
• Security features available, data collection, alarm oacute, recipes and trend oacute
• Low power consumption
• Small dimensions

The AS46TFT1507 operator panel is equipped with an LED diode on the front, which shows the power status of the panel. The front of the panel has IP66 protection, which makes it resistant to water. Additionally, it is covered with a scratch-resistant protective film.

Astraada HMI Panel is a series of economical, touch-sensitive operator panels. A wide range of available models combined with extensive functionality and high reliability make these panels widely used to operate machines and in small and medium-sized control systems.

All panels are characterized by the highest quality and resistance to interference that occur in an industrial environment. It offers advanced visualization functions known from SCADA systems, e.g. alarms, logging and visualization of historical variables, recipes and archiving of settings entered by operators.

The panel offered in the promotion is ideal for learning how to program and use touch operator interfaces, as well as for using it on a physical object.

• Two series of panels available: AS45 and AS46
• Screen sizes from 4.3" to 15"
• Communication ports:
  • AS45: RS232, RS422/485, RS485, USB Client/Host, Ethernet
  • AS46: RS232, RS422/485, 3x RS485, USB Client/Host, Ethernet
• Screen degree of protection:
  • AS45: IP65
  • AS46: IP66
• Operating temperature from -10°C to 60°C
• 30 months warranty

Astraada panels can exchange data with most automation devices available on the market.

The Astraada HMI panels come with a free software - Astraada HMI CFG. The most important funcions:
