120W power supply (100-240VAC / 48V/2.5A DC), overvoltage, overload and thermal protection, DIN mounting, 54 month warranty
Product description

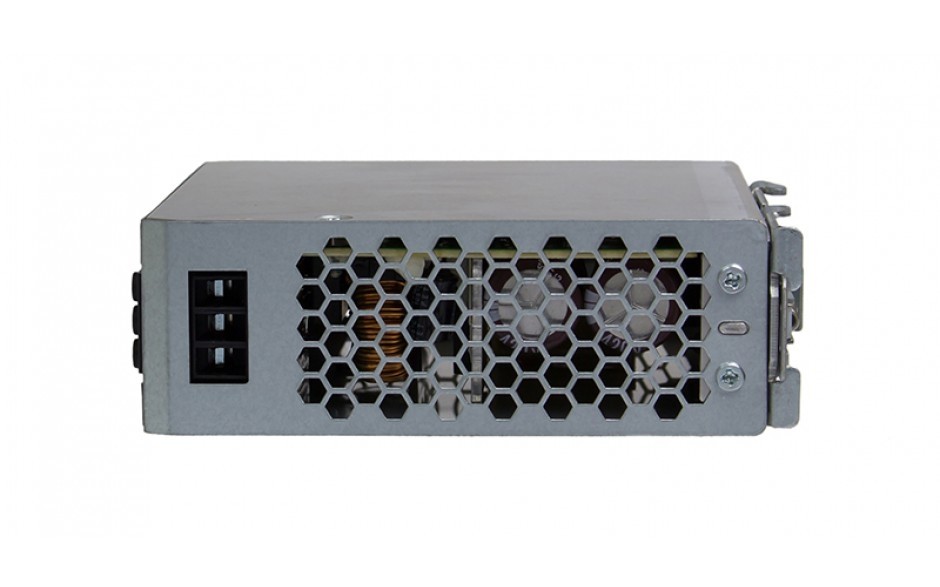

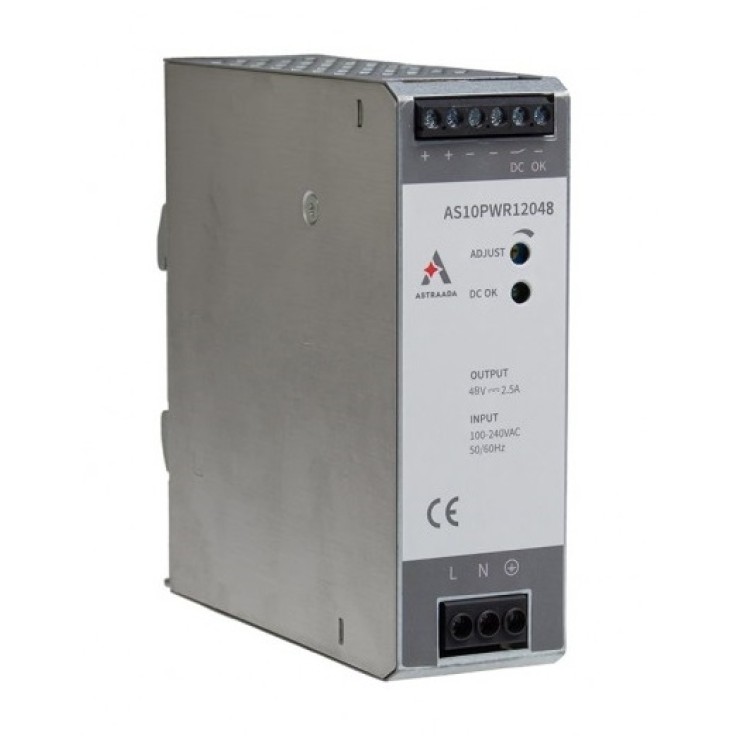

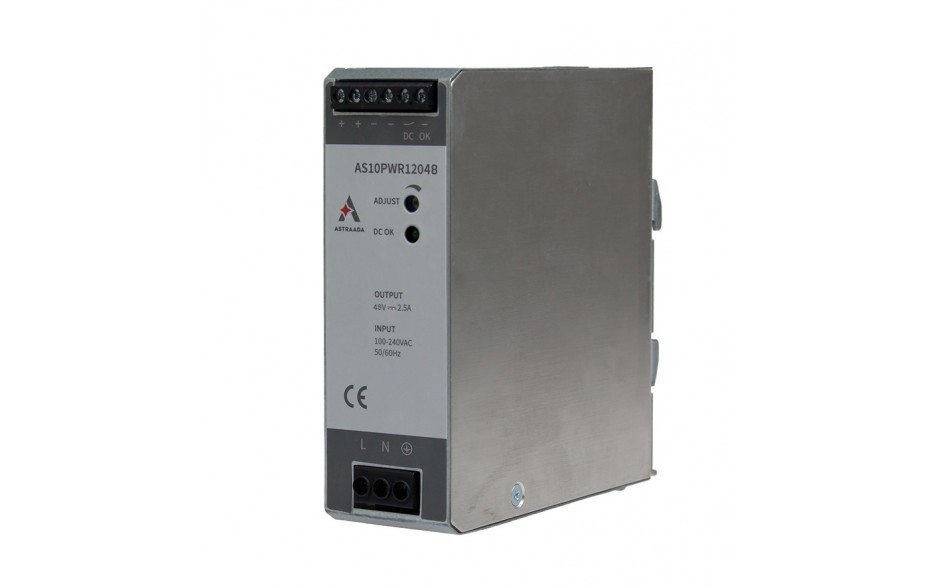

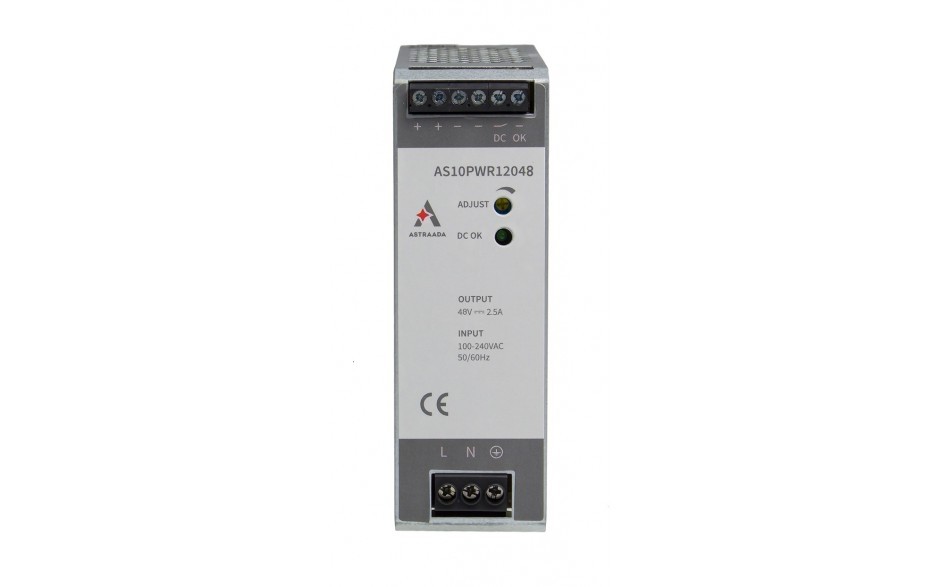

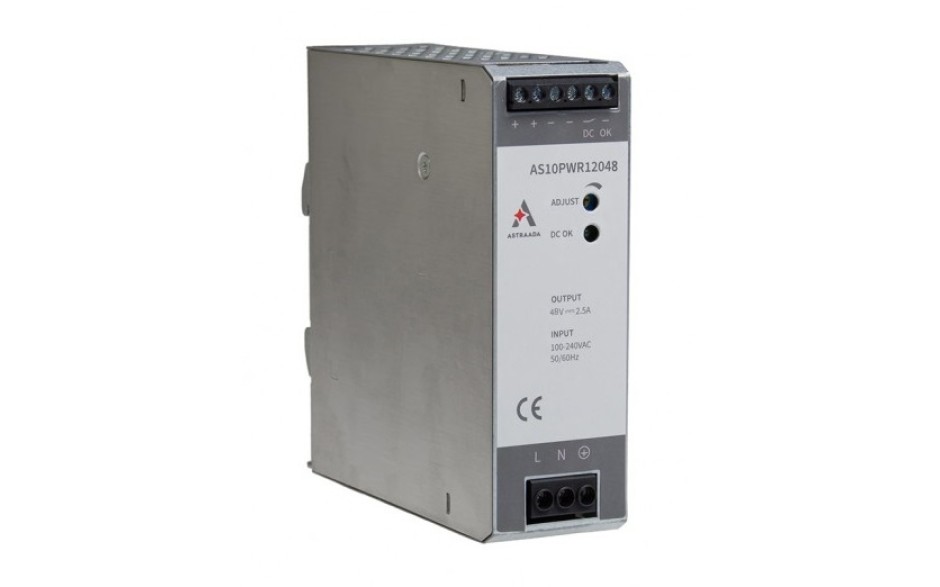

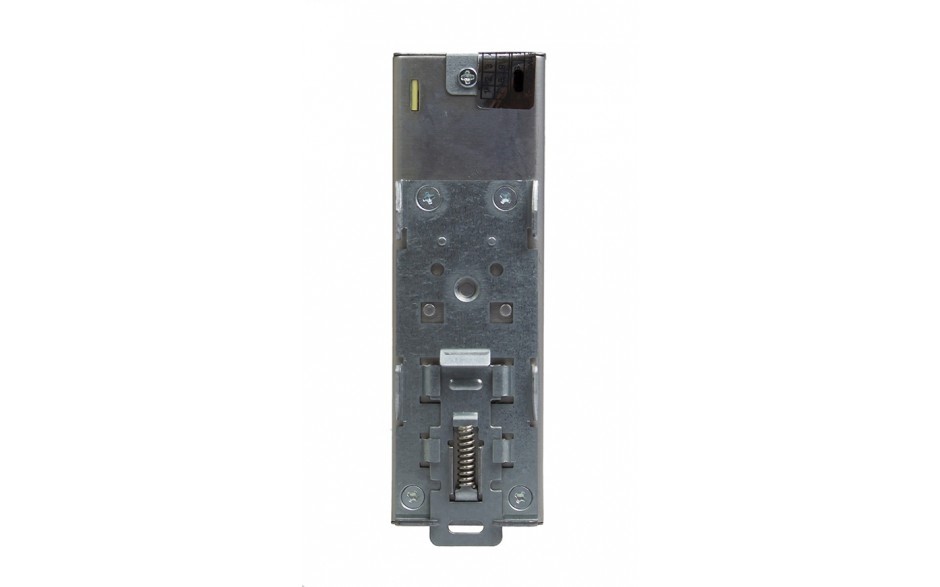

AS10PWR12048 switching power supplies are designed for industrial applications. They provide 48VDC output voltage and 120W output power.
Thanks to their parameters, they are suitable for operation in harsh environmental conditions. The power supplies meet relevant safety standards and have a number of safety features. Astraada Power switching power supplies are suitable for DIN rail mounting.
Parameters | AS10PWR12048 power supply |
|---|---|
| Input voltage | 100 ÷ 240 VAC |
| Nominal power | 120 W |
| Output voltage | 48 VDC (44 ÷ 56 VDC) |
| Output current | 0 ÷ 2.5 A |
| Overload protection | 105 ÷ 150% |
| Overvoltage protection | 57.0V-67.2V |
| Reset | Automatic resumption |
| EMC standards | EN55022 class B; EN61000-3-2,3; EN61000-6-2; EN61000-6-2; EN61000-4-2,3,4,5,6,8,11; ENV50204 |
| Dimensions (width x height x depth) [mm] | 40.0 x 123.6 x 117.6 |
| Weight | 0.54 kg |
| Operating temperature range | -20 ÷ +70°C |
| Humidity (non-condensing) | 5 ÷ 95% |
