Astraada ONE Compact HMI Prime 10" - PLC+HMI, 10.1", FullHD, 800 MHz ARM, 512MB RAM, 4DI, 4DO, 4AI, 1x RS232/485, 1x USB, 1x CAN, 2x ETH, 1x MicroSD, Codesys 3.5, Modbus TCP/RTU (DC2110, 270011200)

icon-sku SKU: S-01010104-0405

Available in 24h icon-available
Add to Compare
2.031,00 EUR
Courier delivery - from 9 EUR   own transport - free of charge   Conditions of delivery »
The product has technical support by ASTRAADA  Support details »


Product description

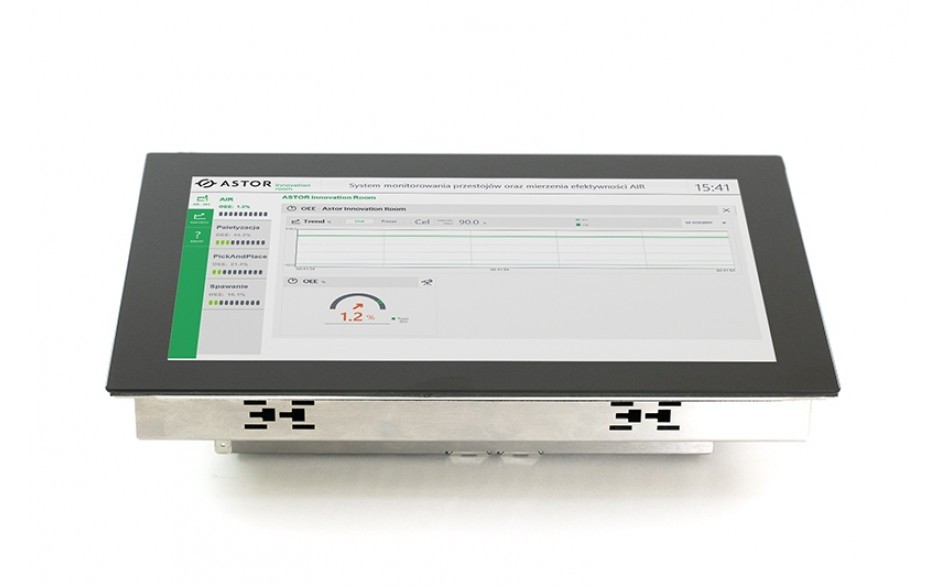

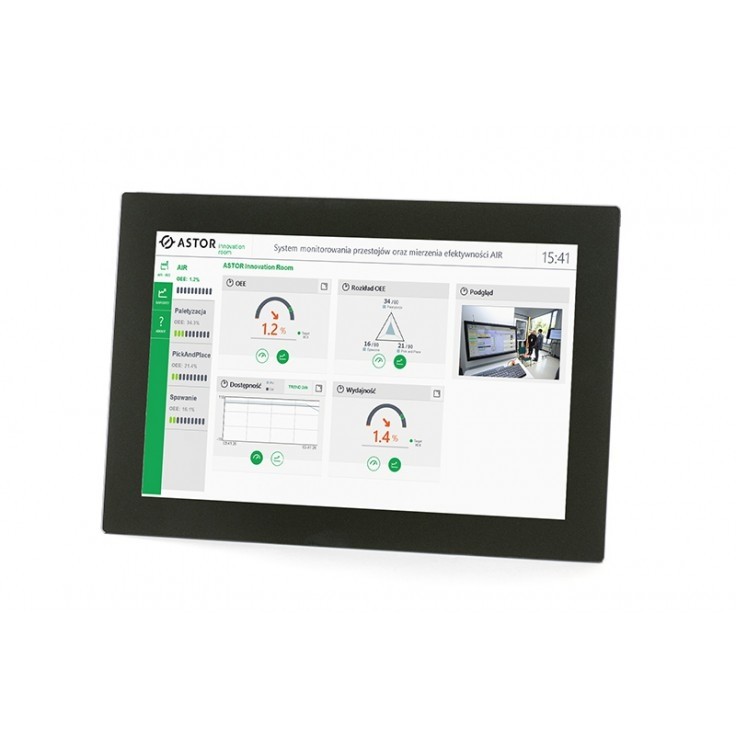

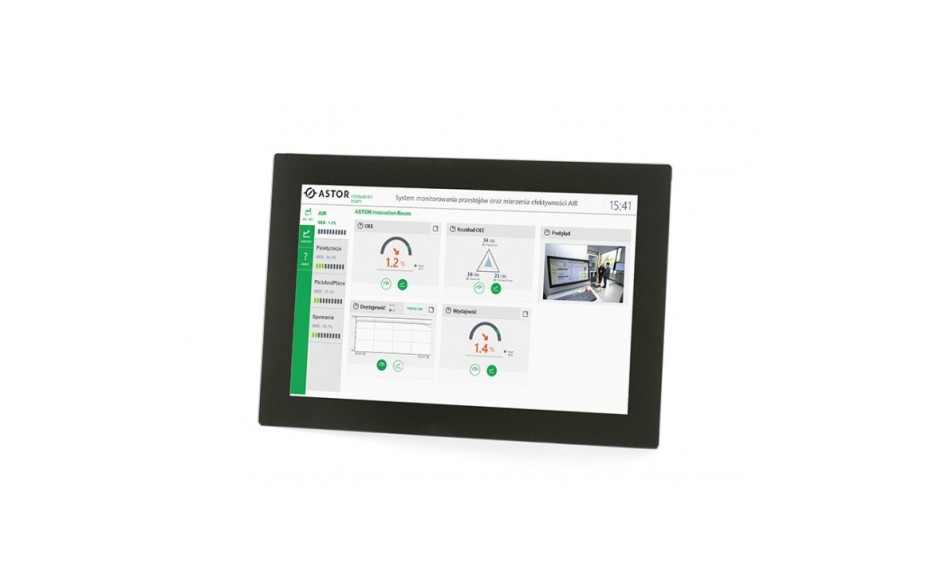

The DC2110W X CS unit is a compact 10.1" operator panel integrated with a PLC. The panel features a high-quality capacitive screen with MultiTouch function and a protective CLEAN surface. The controller is equipped with a powerful 800 MHz Arm®CPU processor with Cortex TM-A9 core. The DC2110W X CS unit is ideal for building powerful and easily scalable control systems. It enables the construction of both local systems and distributed systems based on the ultrafast EtherCAT protocol. A wide range of expansion modules mounted in remote I/O modules allows you to tailor the control system to your specific application requirements. Furthermore, using the EtherCAT protocol, it is possible to easily integrate and control a servo drive or set of servo drives. The Astraada One Compact HMI DC2110W X CS offers extensive communication capabilities. It is equipped with Ethernet, CAN and RS232 ports. EtherCAT, CAN, CANOpen, Modbus TCP/IP and Modbus RTU protocols are offered to the programmer as standard. Optional licences are available for Profinet, EtherNet/IP, VPN Client, OPC UA, BACnet, J1939, SoftMotion, SoftMotion+CNC and HSC.

An important advantage of the DC2110W X CS unit is its compatibility with the Safety Astraada SC-1000 controller, making it easy to build a safety system in accordance with IEC 61508 SIL3.

The development environment for the Astraada One controllers is the CODESYS (IEC61131-3) platform, which offers very extensive programming capabilities. It integrates tools for PLC programming, process visualisation, servo control and Safety. A single database of variables for the control program and visualisation, ensuring architectural transparency, consistency and high speed.

Main features of Astraada One Compact HMI DC2110W X CS

  • one Codesys V3 design environment for programming, visualization, communication and Safety,
  • high-quality capacitive screen (1280 x 800 pixels), MultiTouch,
  • Ethernet, CAN, RS-232 communication ports,
  • EtherCAT, CAN, CANOpen, Modbus TCP/IP, Modbus RTU - as standard,
  • Profinet, EthernetIP, OPC UA, BACnet, J1939, SNMP, VPN Client - optional,
  • support for WebServer and VNC - free access to visualization and control from mobile devices (up to 100 simultaneous connections),
  • SoftMotion/SoftMotion + CNC support,
  • operation in the temperature range 0 ... +55 ˚C,
  • german quality and technology.

Built-in signal support:

  • 4 discrete inputs (HSC support, 500 kHz),
  • 4 discrete outputs (0.5 A),
  • 4 analog inputs - 2 x (-10...+10V, PT100/PT1000 two-wire) and 2 x (-10...+10V, or three-wire return).

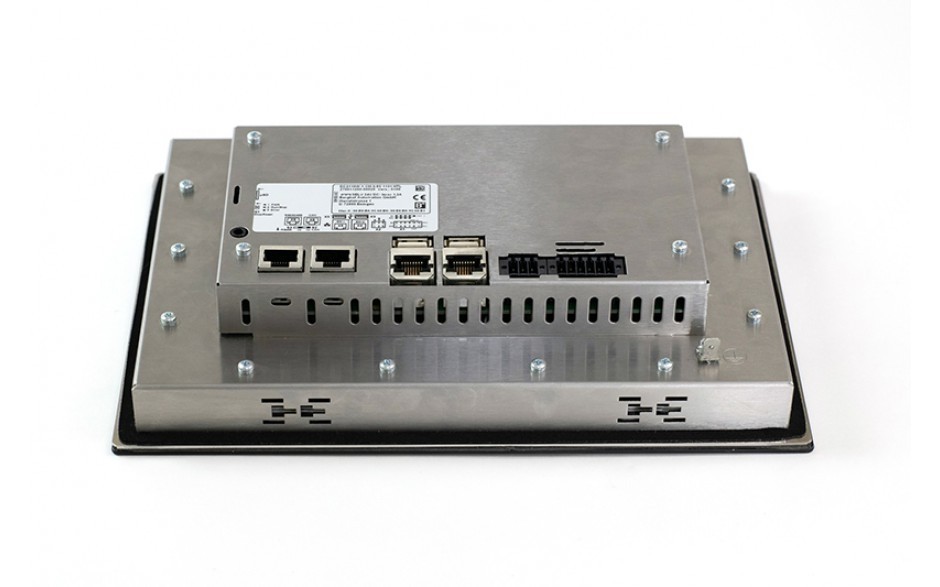

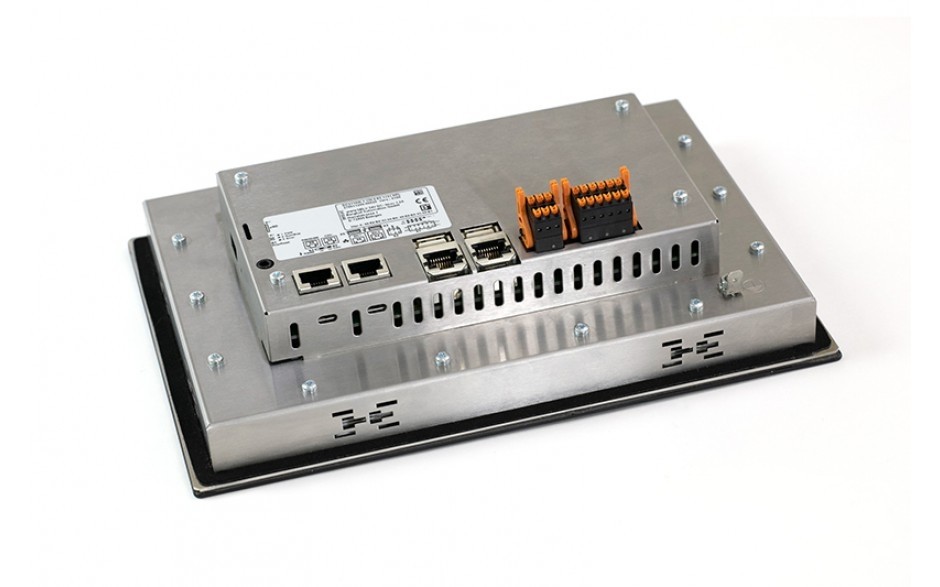

Communication capabilities:

  • serial port: RS232/RS485,
  • 1 configurable Ethernet card,
  • 2 x port USB,
  • slot Micro SD,
  • easy expansion with I/O expansion systems.
