Astraada ONE Compact HMI Prime - PLC+HMI, 7", FullHD, 800 MHz ARM, 512MB RAM, 4DI, 4DO, 4AI, 1x RS232/485, 1x USB, 1x CAN, 2x ETH, 1x MicroSD, Codesys 3.5, Modbus TCP/RTU. Komplet terminali

icon-sku SKU: S-01010104-0404

2-8 weeks icon-time
Add to Compare
1.310,00 EUR
Courier delivery - from 9 EUR   own transport - free of charge   Conditions of delivery »
The product has technical support by ASTRAADA  Support details »


Product description

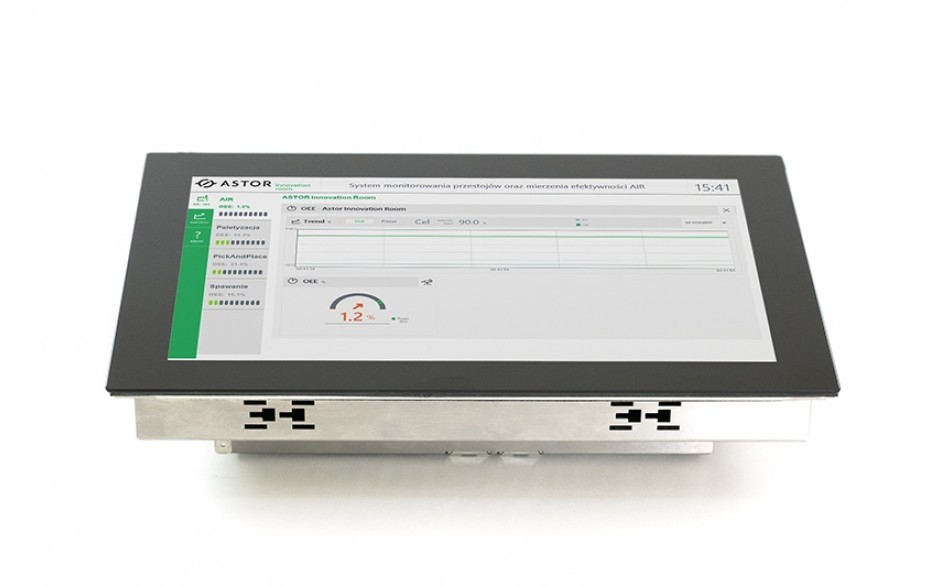

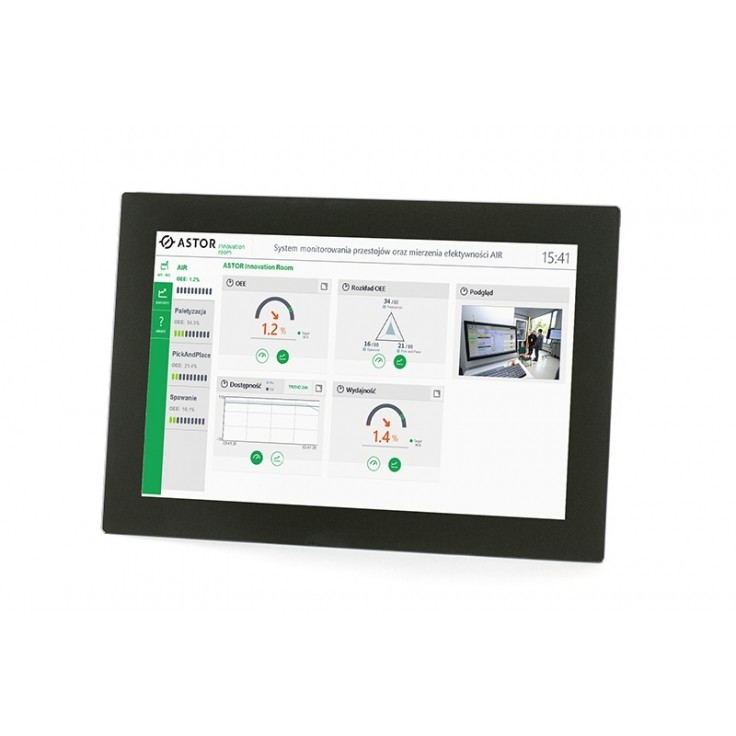

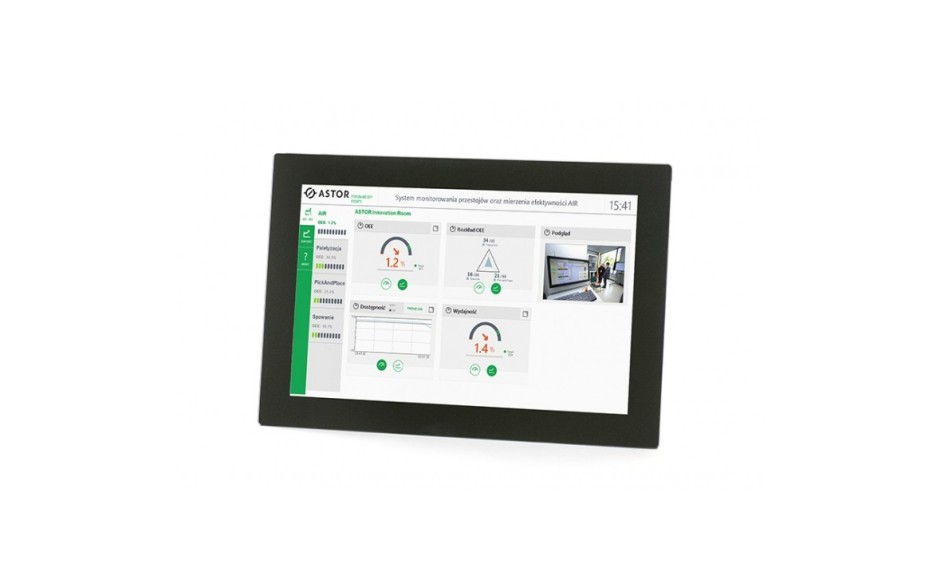

The Astraada ONE Compact HMI Prime unit is a compact 7" operator panel integrated with a PLC. The panel features a high-quality capacitive screen with MultiTouch functionality and a protective CLEAN surface. The controller is equipped with a powerful 800 MHz Arm®CPU processor with Cortex TM-A9 core. The Astraada ONE Compact HMI Prime unit is the ideal solution for building powerful and easily scalable control systems. It enables the construction of both local systems and distributed systems based on the ultrafast EtherCAT protocol. A wide range of expansion modules mounted in remote I/O islands allows you to tailor the control system to the specific requirements of your application. What's more, using the EtherCAT protocol, it is possible to easily integrate and control a servo drive or set of servo drives. The Astraada One Compact HMI Prime offers extensive communication capabilities. It is equipped with Ethernet, CAN and RS232 ports. EtherCAT, CAN, CANOpen, Modbus TCP/IP and Modbus RTU protocols are offered to the programmer as standard. Optional licenses are available for Profinet, EtherNet/IP, VPN Client, OPC UA, BACnet, J1939, SoftMotion, SoftMotion+CNC and HSC.

An important advantage of the Astraada ONE Compact HMI Prime unit is its compatibility with the Safety Astraada SC-1000 controller, making it easy to build a safety system in accordance with the IEC 61508 SIL3 standard.

The development environment for Astraada One controllers is the CODESYS (IEC61131-3) platform, which offers very extensive programming capabilities. It integrates tools for PLC programming, process visualization, servo control and Safety. A single database of variables for the control program and visualization, ensures architectural transparency, consistency and high speed.

Main features of Astraada ONE Compact HMI Prime

  • one Codesys V3 design environment for programming, visualization, communication and Safety,
  • high-quality capacitive screen (800 x 480 pixels), MultiTouch,
  • Ethernet, CAN, RS-232 communication ports,
  • EtherCAT, CAN, CANOpen, Modbus TCP/IP, Modbus RTU - as standard,
  • Profinet, EthernetIP, OPC UA, BACnet, J1939, SNMP, VPN Client - optional,
  • support for WebServer and VNC - free access to visualization and control from mobile devices (up to 100 simultaneous connections),
  • SoftMotion/SoftMotion + CNC support,
  • operation in the temperature range 0 ... +55 ˚C,
  • german quality and technology.

Built-in signal support:

  • 4 discrete inputs (HSC support, 500 kHz),
  • 4 discrete outputs (0.5 A),
  • 4 analog inputs - 2 x (-10...+10V, PT100/PT1000 two-wire) and 2 x (-10...+10V, or three-wire return).

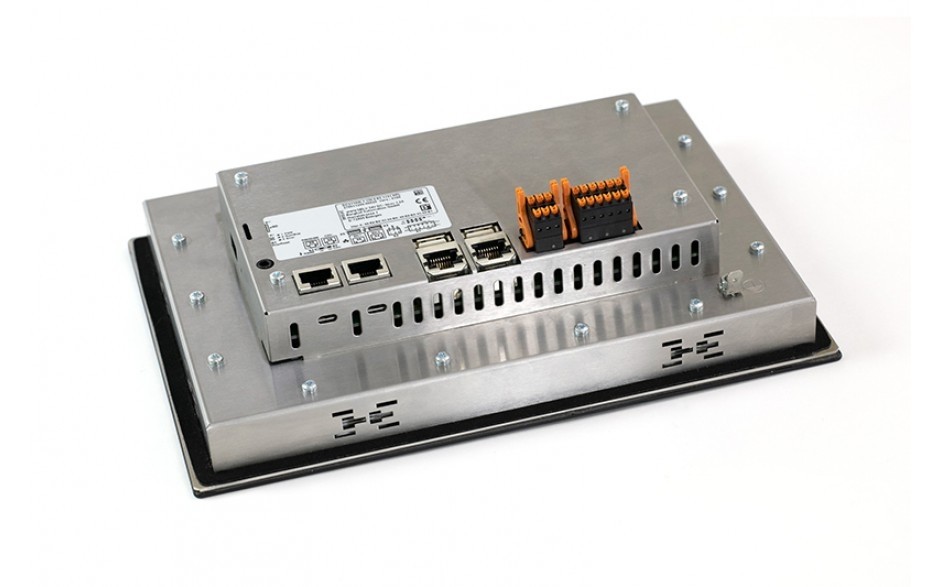

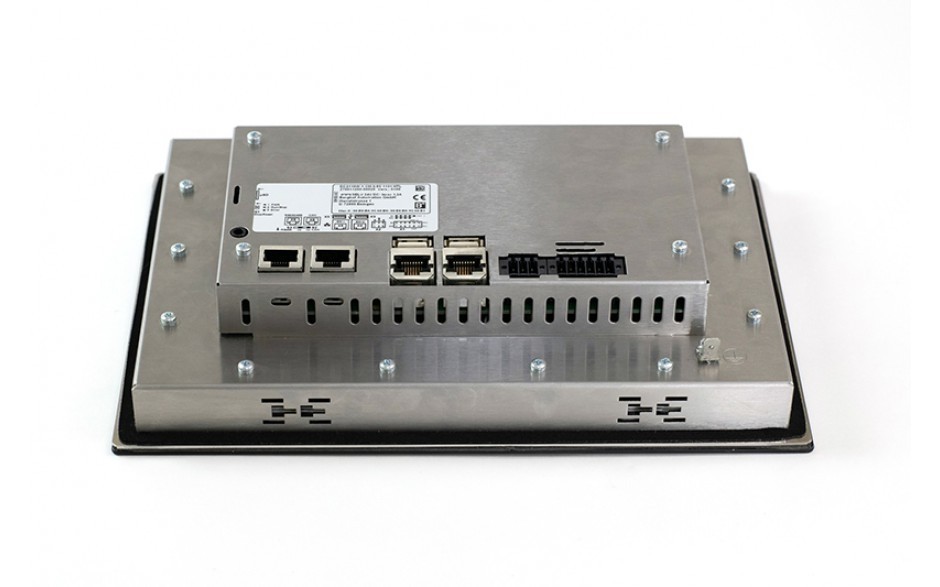

Communication capabilities:

  • serial port: RS232/RS485,
  • 1 configurable Ethernet card,
  • 2 x port USB,
  • slot Micro SD,
  • easy expansion with I/O expansion systems.
