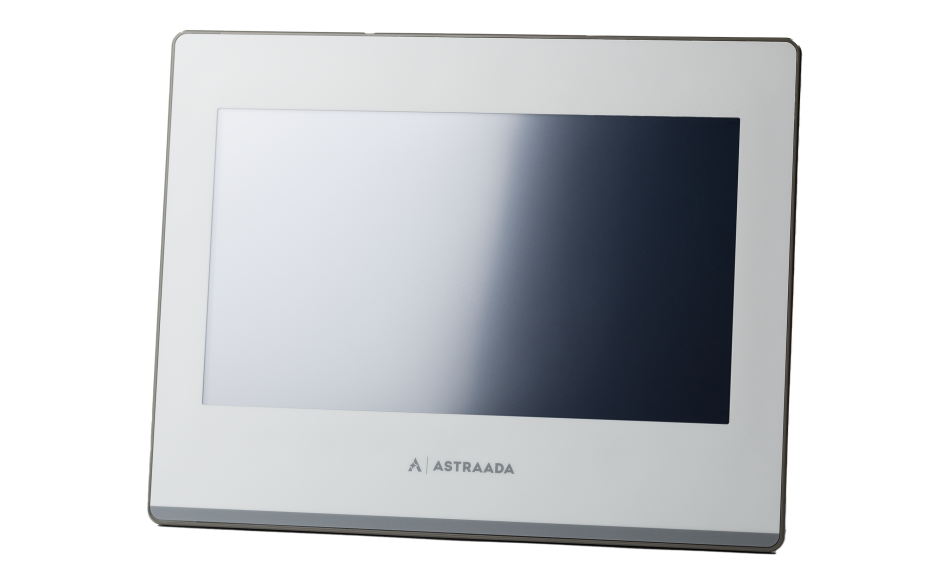

10.1" touch screen panel; TFT matrix with 1024 x 600 resolution; 65535 colours; LED backlight; Ethernet; COM1 - RS232; COM2 - RS422/485; COM3 - RS485; 2 x USB (Client; Host)
Product description

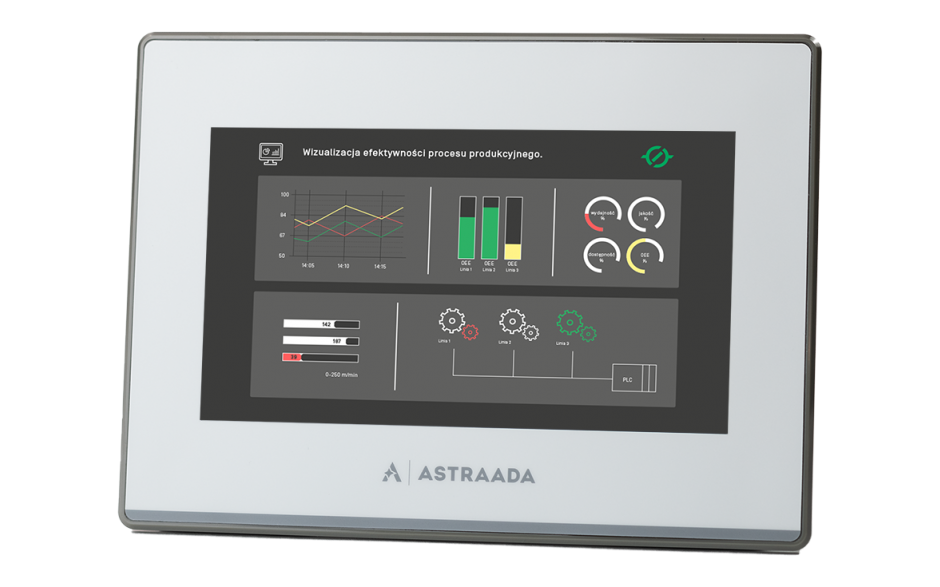

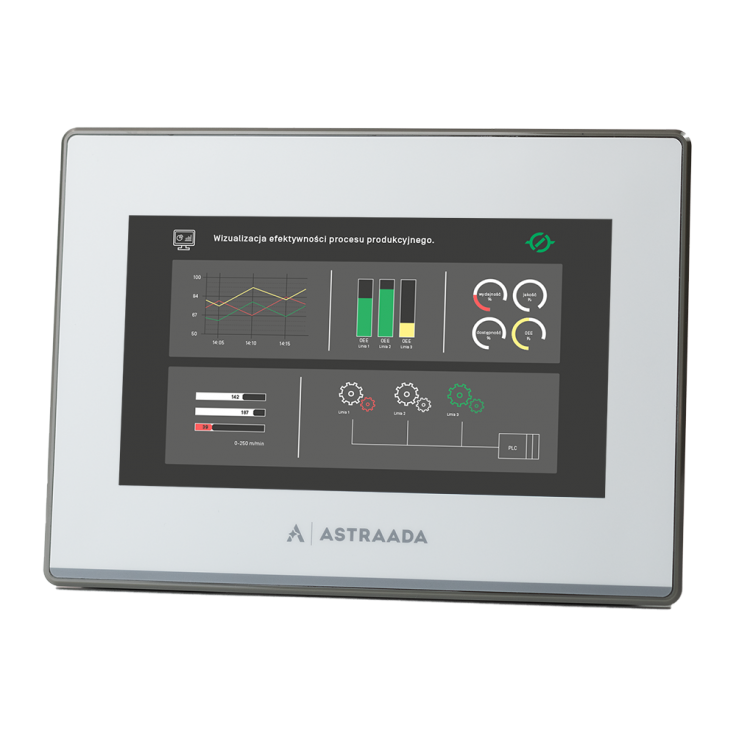

Astraada HMI Panel is a series of economical, touch-sensitive operator panels. A wide range of available models combined with extensive functionality and high reliability make these panels widely used to operate machines and in small and medium-sized control systems.
All panels are characterized by the highest quality and resistance to interference that occur in an industrial environment. It offers advanced visualization functions known from SCADA systems, e.g. alarms, logging and visualization of historical variables, recipes and archiving of settings entered by operators.
The panel offered in the promotion is ideal for learning how to program and use touch operator interfaces, as well as for using it on a physical object.
- Two series of panels available: AS45 and AS46
- Screen sizes from 4.3" to 15"

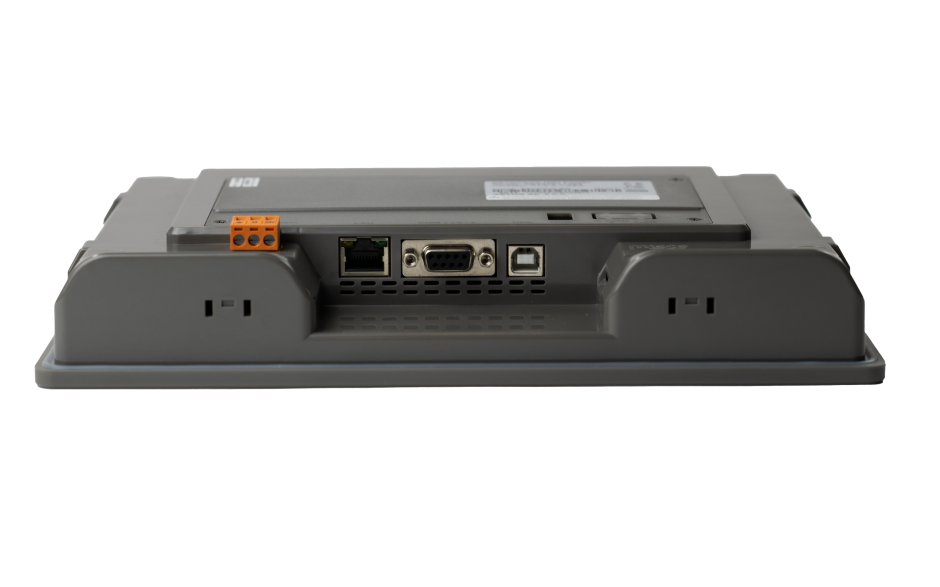

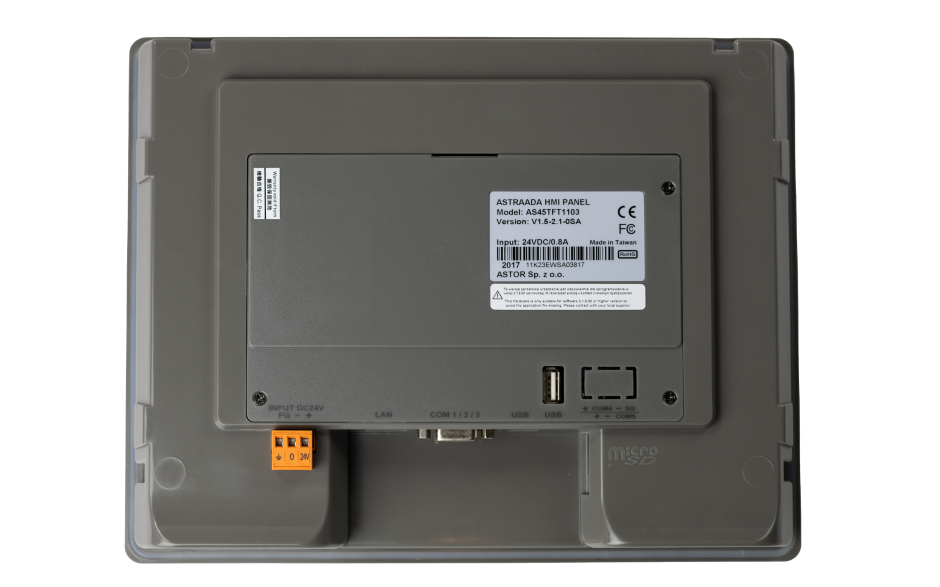

- Communication ports:
- AS45: RS232, RS422/485, RS485, USB Client/Host, Ethernet
- AS46: RS232, RS422/485, 3x RS485, USB Client/Host, Ethernet
- Screen degree of protection:
- AS45: IP65
- AS46: IP66
- Operating temperature from -10°C to 60°C
- 30 months warranty
Astraada panels can exchange data with most automation devices available on the market.
The Astraada HMI panels come with a free software - Astraada HMI CFG. The most important funcions:
- Built-in macro script editor
- Automatic operation recording to *.csv files
- Remote access to the panel through VNC protocol
- Quick parameterization via recipes
- MQTT communication
- Built-in simulator
- Multilingual application support
