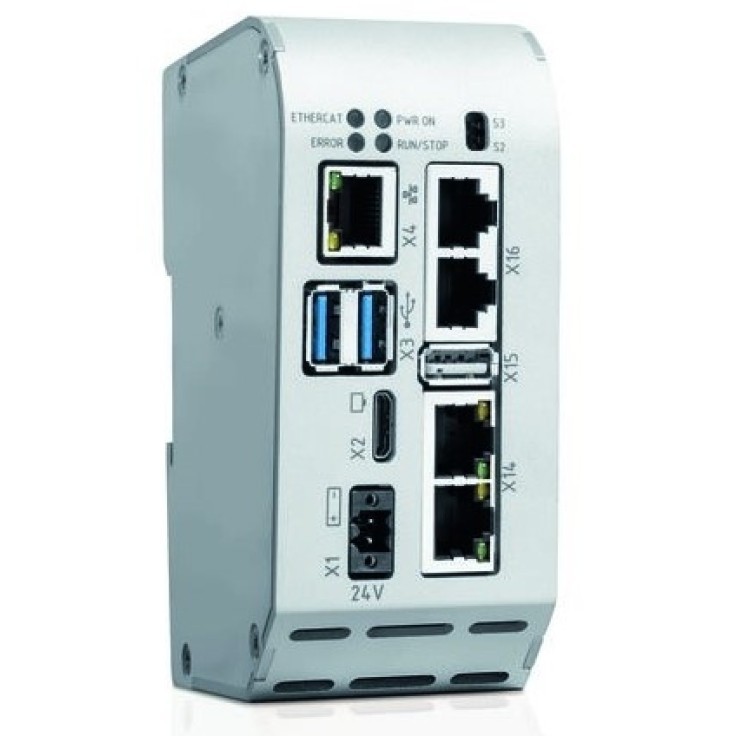

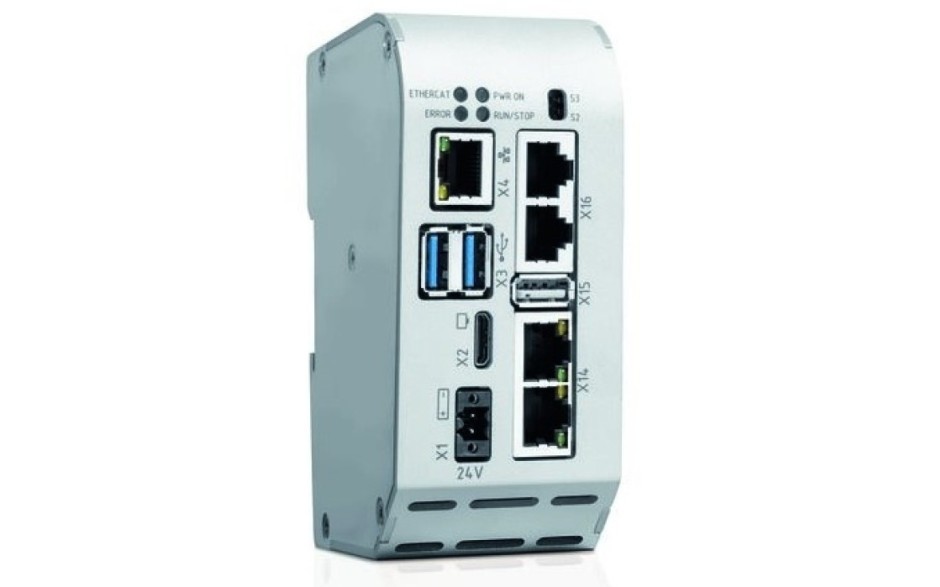

Astraada One Modular MC Plus - Central Modular Controller, 1.5 GHz QuadCore, 8GB Flash, 1GB RAM, 2x Ethernet GB, 1x EtherCAT, 1x RS232/RS485, 1x CAN, 3x USB, Codesys V3.5

Product description

A modular CODESYS PLC based on Raspberry Pi with an EtherCAT I/O system

With the Raspberry Pi-based B-Nimis MC-Pi series, Astraada brings high-performance CODESYS quad-core controllers to the market as the perfect solution for the implementation of your IOT, motion and automation projects.

With cycle times reaching down to 500 μs, the real-time quad-core CODESYS B-Nimis MC-Pi controller offers the perfect balance between computing power and costs.

The uncompromising adherence to general standards is not only expressed in the interfaces and connectable options, even internal mechanisms are oriented to them, such as with an internal communication system based on EtherCAT® as a uniform concept throughout.

Other features at a glance:

• Up to 2GB RAM / 8GB Flash / 200kB Retain
• Integrated EtherCAT communication system
• Industrial temperature ranges
• CODESYS standard
• Optimized real-time behavior
• WLAN & Bluetooth optional
• Cycle times down to 500 μs
• Optimized real-time behavior
• WLAN & Bluetooth optional
• Cycle times down to 500 μs
• Outstanding visualization performance
• Compute Module 4
• Available with all common fieldbuses
